JetEngine CCTS

Integrasi dengan plugin JetEngine dari Crocoblock.

Skema GraphQL dilengkapi dengan field untuk melakukan query data Custom Content Type (CCT).

Field root

Field	Deskripsi
`jetengineCCTEntries`	Mengembalikan daftar entri CCT (tipe `JetEngineCCTEntry`).
`jetengineCCTEntryCount`	Mengembalikan jumlah entri CCT.
`jetengineCCTEntry`	Mengembalikan satu entri CCT (tipe `JetEngineCCTEntry`).

Slug CCT harus disediakan melalui argumen slug (CCT harus diatur sebagai queryable di Pengaturan plugin, lihat di bawah).

Tipe JetEngineCCTEntry

Pada tipe JetEngineCCTEntry, kita dapat melakukan query nilai field melalui:

Field	Deskripsi
`id`	ID database dari entri.
`uniqueID`	Pengenal unik untuk entri, terdiri dari slug CCT dan ID entri.
`cctSlug`	Slug CCT tempat entri ini berasal.
`status`	Status entri (mis. `publish`, `draft`).
`createdDate`	Kapan entri dibuat.
`createdDateStr`	Tanggal pembuatan entri, diformat sebagai string.
`modifiedDate`	Kapan entri terakhir diubah.
`modifiedDateStr`	Tanggal modifikasi terakhir entri, diformat sebagai string.
`authorID`	ID penulis entri.
`author`	Objek koneksi pengguna penulis.
`singleCustomPostID`	ID custom post tunggal yang ditautkan, jika ada.
`singleCustomPost`	Objek koneksi custom post tunggal yang ditautkan.
`fieldValues`	Objek JSON dengan semua field CCT untuk entri tersebut.
`fieldValue(slug)`	Untuk melakukan query satu field berdasarkan slug.

Nilai field CCT

Nilai dari fieldValue(slug) dan dari setiap kunci di fieldValues di-cast sesuai dengan tipe field yang didefinisikan di CCT.

Field ID implisit (selalu di-cast ke int bila ada dan tidak kosong): id, singleCustomPostID, authorID.

Cara setiap tipe field CCT di-cast dalam respons GraphQL:

Text (default): Tidak berubah (string atau sesuai penyimpanan).

Number: float jika ada titik desimal; sebaliknya int.

Switcher: Boolean; true untuk 1, true, yes, on (tidak peka huruf besar/kecil).

Media: "ID" → int; "Both" → objek { id, url }; selain itu tidak berubah.

Gallery: ID dipisahkan koma atau array ID → int[].

Checkbox: Array; jika field bertipe "array" → daftar nilai; selain itu objek berindeks.

Posts: Tunggal → int; jamak → int[].

Repeater: Array baris; sub-field di-cast secara rekursif berdasarkan tipenya.

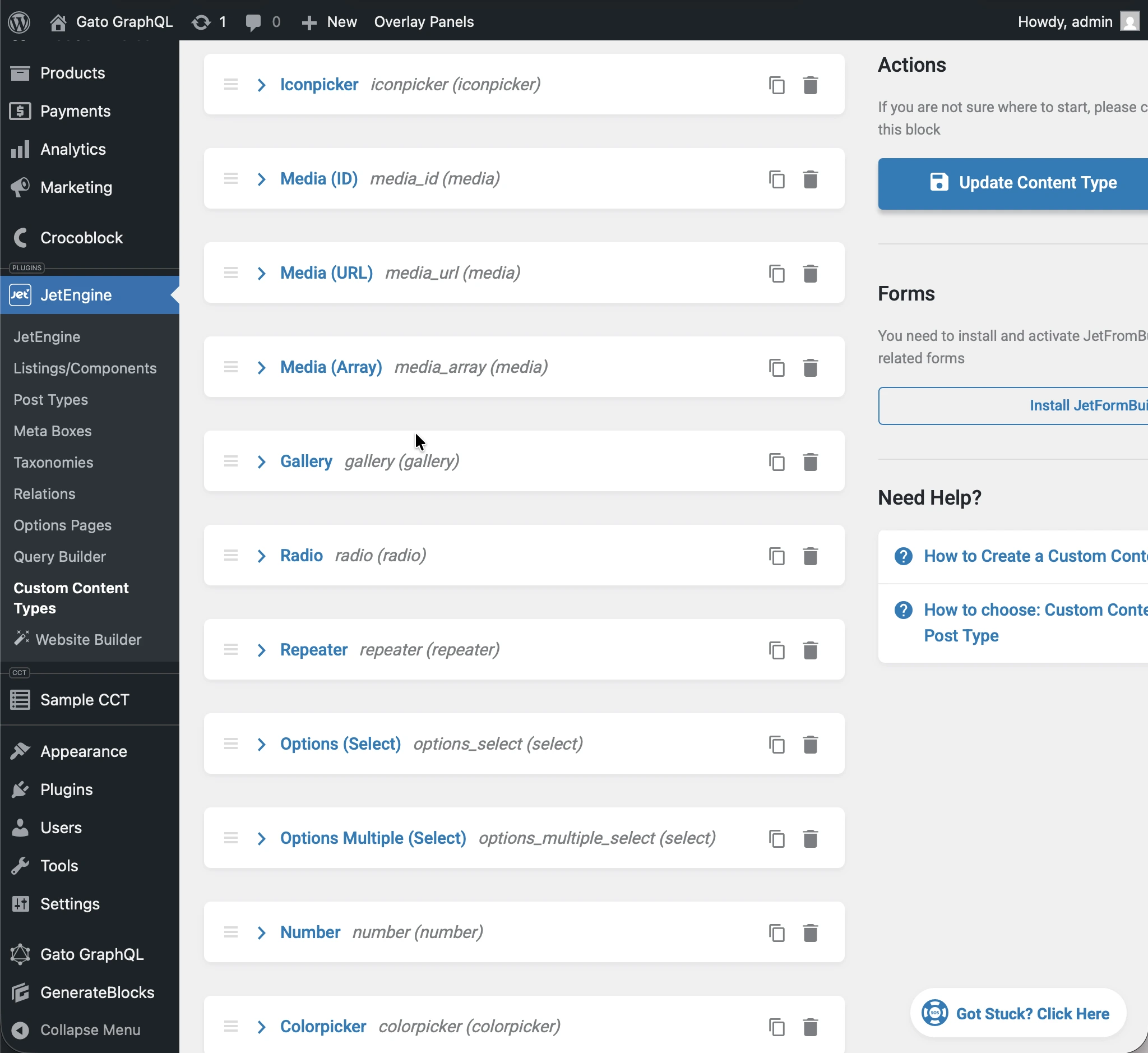

Contoh di bawah menggunakan CCT dengan slug "sample_cct" dan field dari berbagai tipe (text, number, gallery, dll).

Menjalankan query berikut:

query JetEngineCCTEntries {
  jetengineCCTEntry(cctSlug: "sample_cct", by: { id: 1 }) {
    label_text: fieldValue(slug: "label_text")
    textarea: fieldValue(slug: "textarea")
    date: fieldValue(slug: "date")
    time: fieldValue(slug: "time")
    datetime: fieldValue(slug: "datetime")
    wysisyg: fieldValue(slug: "wysisyg")
    switcher: fieldValue(slug: "switcher")
    checkbox: fieldValue(slug: "checkbox")
    checkbox_array: fieldValue(slug: "checkbox_array")
    iconpicker: fieldValue(slug: "iconpicker")
    media_id: fieldValue(slug: "media_id")
    media_url: fieldValue(slug: "media_url")
    media_array: fieldValue(slug: "media_array")
    gallery: fieldValue(slug: "gallery")
    radio: fieldValue(slug: "radio")
    repeater: fieldValue(slug: "repeater")
    options_select: fieldValue(slug: "options_select")
    options_multiple_select: fieldValue(slug: "options_multiple_select")
    number: fieldValue(slug: "number")
    colorpicker: fieldValue(slug: "colorpicker")
    post: fieldValue(slug: "post")
    posts: fieldValue(slug: "posts")
  }
}

...setiap field dalam respons di-cast ke tipe CCT-nya:

{
  "data": {
    "jetengineCCTEntry": {
      "label_text": "Some label",
      "textarea": "Some description here\r\n\r\nSome description there",
      "date": "2026-01-24",
      "time": "09:13",
      "datetime": "2026-03-07T08:00",
      "wysisyg": "<p>Some <strong>description</strong> here</p>\n<p><em>Some description</em> there</p>\n<p>Some <a href=\"https://gatoplugins.com\">link</a></p>\n",
      "switcher": true,
      "checkbox": {
        "one": true,
        "two": false,
        "three": true
      },
      "checkbox_array": [
        "one",
        "two"
      ],
      "iconpicker": "fa fa-road",
      "media_id": 1362,
      "media_url": "https://gatographql.com/wp-content/uploads/GatoGraphQL-logo.webp",
      "media_array": {
        "id": 1380,
        "url": "https://gatographql.com/wp-content/uploads/Funny-Dog.jpg"
      },
      "gallery": [
        1361,
        1362,
        1363
      ],
      "radio": "1",
      "repeater": [
        {
          "label_(text)": "First item in repeater",
          "date": "2026-01-17",
          "time": "11:00",
          "datetime": "2026-01-16T11:16",
          "textarea": "Gato GraphQL provides a multitude of interactive clients,",
          "wysiwyg": "<p>Gato GraphQL provides a <strong>multitude of interactive clients</strong>, and a user interface based on the <a href=\"https://wordpress.org\">WordPress editor</a>, so that anybody can operate it, whether a developer or not.</p>\n",
          "switcher": true,
          "iconpicker": "fa fa-inbox",
          "media_id": 1361,
          "media_url": "https://gatographql.com/wp-content/uploads/Funny-Dog.jpg",
          "media_array": {
            "id": 1380,
            "url": "https://gatographql.com/wp-content/uploads/Funny-Dog.jpg"
          },
          "gallery": [
            1363,
            1361
          ],
          "radio": "two",
          "options_select": "three",
          "options_multiple_select": [
            "two",
            "four"
          ],
          "number": 22,
          "colorpicker": "#757575",
          "post": 1140,
          "posts": [
            1,
            2
          ]
        },
        {
          "label_(text)": "Second item in repeater",
          "date": "2026-01-15",
          "time": "00:18",
          "datetime": "2026-01-18T00:00",
          "textarea": "These clients make it very easy to interact with Gato GraphQL",
          "wysiwyg": "<p>These clients <strong>make it very easy to interact with Gato GraphQL</strong>, directly within the <em>wp-admin</em> (and without the need of any PHP code), reducing friction and removing barriers so that anyone (developers and non-developers alike) can use it.</p>\n",
          "switcher": false,
          "iconpicker": "fa fa-search-plus",
          "media_id": 1362,
          "media_url": "https://gatographql.com/wp-content/uploads/LICENSE.txt",
          "media_array": {
            "id": 1363,
            "url": "https://gatographql.com/wp-content/uploads/LICENSE.txt"
          },
          "gallery": [
            1380,
            1361,
            1362
          ],
          "radio": "three",
          "options_select": "three",
          "options_multiple_select": [
            "three"
          ],
          "number": 4469,
          "colorpicker": "#2d2270",
          "post": 2,
          "posts": [
            1688,
            1682
          ]
        }
      ],
      "options_select": "1",
      "options_multiple_select": [
        "one",
        "two",
        "five"
      ],
      "number": 66778899,
      "colorpicker": "#721abf",
      "post": 1,
      "posts": [
        1140,
        1113
      ]
    }
  }
}

Type casting yang sama berlaku untuk setiap field dalam JSON yang dikembalikan oleh fieldValues:

query JetEngineCCTEntries {
  jetengineCCTEntry(cctSlug: "sample_cct", by: { id: 1 }) {
    fieldValues
  }
}

...yang mengembalikan:

{
  "data": {
    "jetengineCCTEntry": {
      "fieldValues": {
        "label_text": "Some label",
        "textarea": "Some description here\r\n\r\nSome description there",
        "date": "2026-01-24",
        "time": "09:13",
        "datetime": "2026-03-07T08:00",
        "wysisyg": "<p>Some <strong>description</strong> here</p>\n<p><em>Some description</em> there</p>\n<p>Some <a href=\"https://gatoplugins.com\">link</a></p>\n",
        "switcher": true,
        "checkbox": {
          "one": true,
          "two": false,
          "three": true
        },
        "checkbox_array": [
          "one",
          "two"
        ],
        "iconpicker": "fa fa-road",
        "media_id": 1362,
        "media_url": "https://gatographql.com/wp-content/uploads/GatoGraphQL-logo.webp",
        "media_array": {
          "id": 1380,
          "url": "https://gatographql.com/wp-content/uploads/Funny-Dog.jpg"
        },
        "gallery": [
          1361,
          1362,
          1363
        ],
        "radio": "1",
        "repeater": [
          {
            "label_(text)": "First item in repeater",
            "date": "2026-01-17",
            "time": "11:00",
            "datetime": "2026-01-16T11:16",
            "textarea": "Gato GraphQL provides a multitude of interactive clients,",
            "wysiwyg": "<p>Gato GraphQL provides a <strong>multitude of interactive clients</strong>, and a user interface based on the <a href=\"https://wordpress.org\">WordPress editor</a>, so that anybody can operate it, whether a developer or not.</p>\n",
            "switcher": true,
            "iconpicker": "fa fa-inbox",
            "media_id": 1361,
            "media_url": "https://gatographql.com/wp-content/uploads/Funny-Dog.jpg",
            "media_array": {
              "id": 1380,
              "url": "https://gatographql.com/wp-content/uploads/Funny-Dog.jpg"
            },
            "gallery": [
              1363,
              1361
            ],
            "radio": "two",
            "options_select": "three",
            "options_multiple_select": [
              "two",
              "four"
            ],
            "number": 22,
            "colorpicker": "#757575",
            "post": 1140,
            "posts": [
              1,
              2
            ]
          },
          {
            "label_(text)": "Second item in repeater",
            "date": "2026-01-15",
            "time": "00:18",
            "datetime": "2026-01-18T00:00",
            "textarea": "These clients make it very easy to interact with Gato GraphQL",
            "wysiwyg": "<p>These clients <strong>make it very easy to interact with Gato GraphQL</strong>, directly within the <em>wp-admin</em> (and without the need of any PHP code), reducing friction and removing barriers so that anyone (developers and non-developers alike) can use it.</p>\n",
            "switcher": false,
            "iconpicker": "fa fa-search-plus",
            "media_id": 1362,
            "media_url": "https://gatographql.com/wp-content/uploads/LICENSE.txt",
            "media_array": {
              "id": 1363,
              "url": "https://gatographql.com/wp-content/uploads/LICENSE.txt"
            },
            "gallery": [
              1380,
              1361,
              1362
            ],
            "radio": "three",
            "options_select": "three",
            "options_multiple_select": [
              "three"
            ],
            "number": 4469,
            "colorpicker": "#2d2270",
            "post": 2,
            "posts": [
              1688,
              1682
            ]
          }
        ],
        "options_select": "1",
        "options_multiple_select": [
          "one",
          "two",
          "five"
        ],
        "number": 66778899,
        "colorpicker": "#721abf",
        "post": 1,
        "posts": [
          1140,
          1113
        ]
      }
    }
  }
}

Memberikan akses ke CCT

Secara default, tidak ada CCT yang dapat di-query.

Untuk memberikan akses ke suatu CCT, CCT tersebut harus diatur sebagai queryable di Pengaturan plugin.

Ada 2 tempat di mana konfigurasi ini dapat dilakukan, berdasarkan urutan prioritas:

Kustom: Di Konfigurasi Skema yang sesuai
Umum: Di halaman Pengaturan

Di Konfigurasi Skema yang diterapkan ke endpoint, pilih opsi Use custom configuration lalu masukkan entri yang diinginkan:

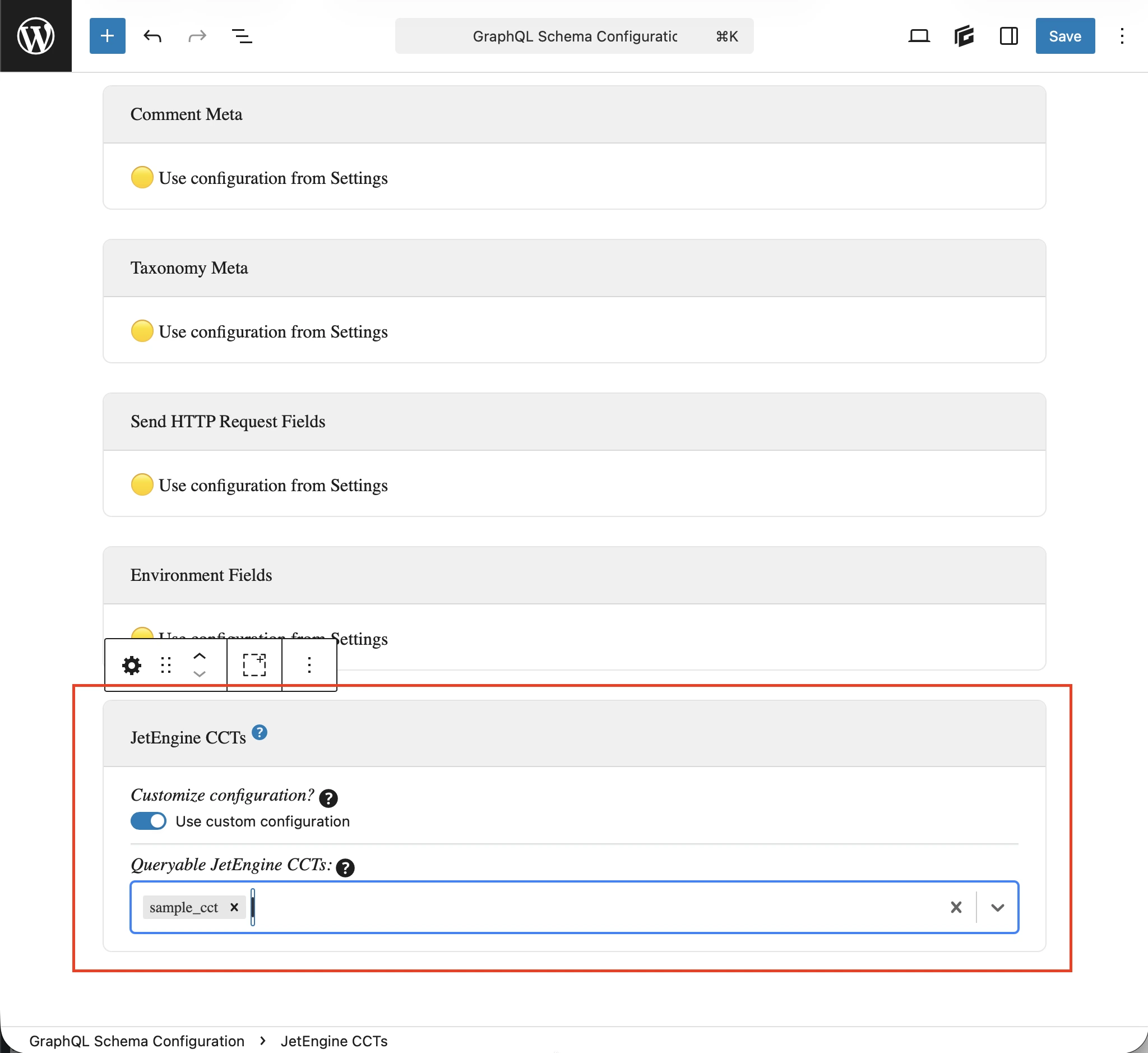

Mendefinisikan CCT yang dapat di-query di Konfigurasi Skema

Jika tidak, entri yang didefinisikan pada opsi Queryable JetEngine CCTS di bawah bagian JetEngine CCTS dari Pengaturan akan digunakan:

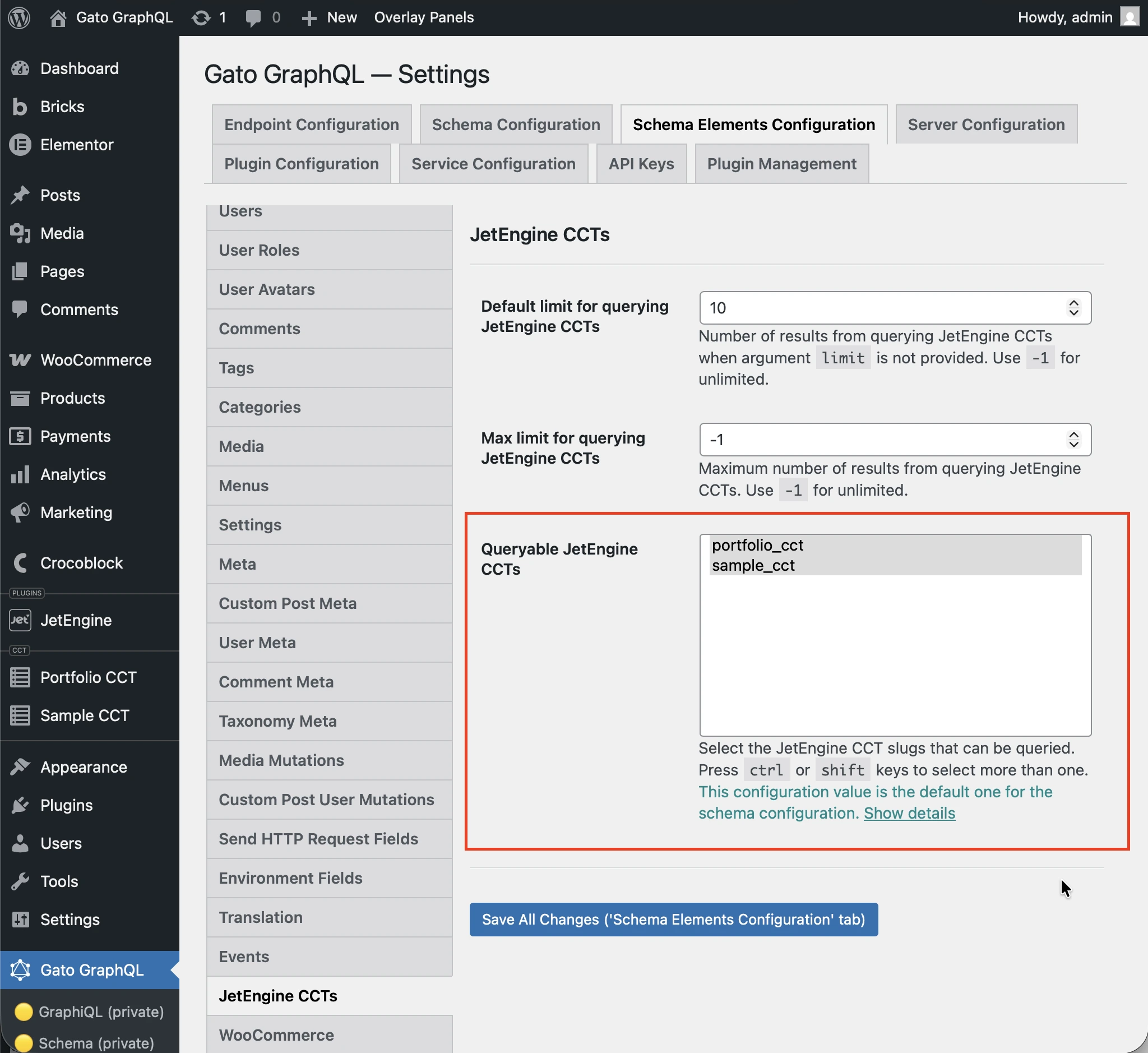

Mendefinisikan CCT yang dapat di-query di Pengaturan

Contoh Query

Daftar entri CCT:

query {
  jetengineCCTEntries(cctSlug: "sample_cct") {
    id
    uniqueID
    cctSlug
    status
    createdDate
    modifiedDate
    authorID
    author {
      id
      name
    }
    singleCustomPostID
    singleCustomPost {
      id
      title
    }
    fieldValues
    someField: fieldValue(slug: "some_field_slug")
  }
}

Satu entri CCT berdasarkan slug dan ID:

query {
  jetengineCCTEntry(cctSlug: "sample_cct", by: { id: 1 }) {
    id
    uniqueID
    cctSlug
    status
    createdDate
    modifiedDate
    author {
      id
      name
    }
    singleCustomPost {
      id
      title
    }
    fieldValues
    someField: fieldValue(slug: "some_field_slug")
  }
}

Daftar dan hitung entri CCT dengan filter, pagination, dan sort:

query {
  jetengineCCTEntryCount(
    cctSlug: "sample_cct"
    filter: { search: [{ field: "cct_author_id", value: 1, operator: EQUALS }] }
  )
  jetengineCCTEntries(
    cctSlug: "sample_cct"
    filter: { search: [{ field: "cct_author_id", value: 1, operator: EQUALS }] }
    pagination: { limit: 10, offset: 0 }
    sort: { by: "cct_created", order: DESC }
  ) {
    id
    authorID
  }
}
